COptex::(DWORD dwSpinCount = 4000);
COptex::(PCSTR  pszName, DWORD dwSpinCount = 4000);
COptex::(PCWSTR pszName, DWORD dwSpinCount = 4000);

void COptex::Enter();
void COptex::Leave();

BOOL COptex::TryEnter();
void COptex::SetSpinCount(DWORD dwSpinCount);

BOOL COptex::IsSingleProcessOptex() const;

VOID DebugBreak();

/******************************************************************************
Module:  Optex.cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include "Optex.h"


///////////////////////////////////////////////////////////////////////////////


// 0=multi-CPU, 1=single-CPU, -1=not set yet
BOOL COptex::sm_fUniprocessorHost = -1;


///////////////////////////////////////////////////////////////////////////////


PSTR COptex::ConstructObjectName(PSTR pszResult,
   PCSTR pszPrefix, BOOL fUnicode, PVOID pszName) {

   pszResult[0] = 0;
   if (pszName == NULL)
      return(NULL);

   wsprintfA(pszResult, fUnicode ? "%s%S" : "%s%s", pszPrefix, pszName);
   return(pszResult);
}


///////////////////////////////////////////////////////////////////////////////


void COptex::CommonConstructor(DWORD dwSpinCount,
   BOOL fUnicode, PVOID pszName) {

   if (sm_fUniprocessorHost == -1) {
      // This is the 1st object constructed, get the number of CPUs
      SYSTEM_INFO sinf;
      GetSystemInfo(&sinf);
      sm_fUniprocessorHost = (sinf.dwNumberOfProcessors == 1);
   }


   m_hevt = m_hfm = NULL;
   m_psi  = NULL;

   if (pszName == NULL) {  // Creating a single-process optex

      m_hevt = CreateEventA(NULL, FALSE, FALSE, NULL);
      chASSERT(m_hevt != NULL);

      m_psi = new SHAREDINFO;
      chASSERT(m_psi != NULL);
      ZeroMemory(m_psi, sizeof(*m_psi));

   } else {                // Creating a cross-process optex

      // Always use ANSI so that this works on Win9x and Windows 2000
      char szResult[100];
      ConstructObjectName(szResult, "Optex_Event_", fUnicode, pszName);
      m_hevt = CreateEventA(NULL, FALSE, FALSE, szResult);
      chASSERT(m_hevt != NULL);

      ConstructObjectName(szResult, "Optex_MMF_", fUnicode, pszName);
      m_hfm = CreateFileMappingA(INVALID_HANDLE_VALUE, NULL,
         PAGE_READWRITE, 0, sizeof(*m_psi), szResult);
      chASSERT(m_hfm != NULL);

      m_psi = (PSHAREDINFO) MapViewOfFile(m_hfm,
         FILE_MAP_WRITE, 0, 0, 0);
      chASSERT(m_psi != NULL);

      // Note: SHAREDINFO's m_lLockCount, m_dwThreadId, and m_lRecurseCount
      // members need to be initialized to 0. Fortunately, a new pagefile
      // MMF sets all of its data to 0 when created. This saves use from
      // some thread synchronization work.
   }

   SetSpinCount(dwSpinCount);
}


///////////////////////////////////////////////////////////////////////////////


COptex::~COptex() {

#ifdef _DEBUG
   if (IsSingleProcessOptex() && (m_psi->m_dwThreadId != 0)) {
      // A single-process optex shouldn't be destroyed if any thread owns it
      DebugBreak();
   }

   if (!IsSingleProcessOptex() &&
      (m_psi->m_dwThreadId == GetCurrentThreadId())) {

      // A cross-process optex shouldn't be destroyed if our thread owns it
      DebugBreak();
   }
#endif

   CloseHandle(m_hevt);

   if (IsSingleProcessOptex()) {
      delete m_psi;
   } else {
      UnmapViewOfFile(m_psi);
      CloseHandle(m_hfm);
   }
}


///////////////////////////////////////////////////////////////////////////////


void COptex::SetSpinCount(DWORD dwSpinCount) {

   // No spinning on single CPU machines
   if (!sm_fUniprocessorHost)
      InterlockedExchangePointer((PVOID*) &m_psi->m_dwSpinCount,
        (PVOID) (DWORD_PTR) dwSpinCount);
}


///////////////////////////////////////////////////////////////////////////////


void COptex::Enter() {

   // Spin, trying to get the optex
   if (TryEnter())
      return;  // We got it, return

   // We couldn't get the optex, wait for it.
   DWORD dwThreadId = GetCurrentThreadId();

   if (InterlockedIncrement(&m_psi->m_lLockCount) == 1) {

      // Optex is unowned, let this thread own it once
      m_psi->m_dwThreadId = dwThreadId;
      m_psi->m_lRecurseCount = 1;

   } else {

      if (m_psi->m_dwThreadId == dwThreadId) {

         // If optex is owned by this thread, own it again
         m_psi->m_lRecurseCount++;

      } else {

         // Optex is owned by another thread, wait for it
         WaitForSingleObject(m_hevt, INFINITE);

         // Optex is unowned, let this thread own it once
         m_psi->m_dwThreadId = dwThreadId;
         m_psi->m_lRecurseCount = 1;
      }
   }
}


///////////////////////////////////////////////////////////////////////////////


BOOL COptex::TryEnter() {

   DWORD dwThreadId = GetCurrentThreadId();

   BOOL fThisThreadOwnsTheOptex = FALSE;     // Assume a thread owns the optex
   DWORD dwSpinCount = m_psi->m_dwSpinCount; // How many times to spin

   do {
      // If lock count = 0, optex is unowned, we can own it
      fThisThreadOwnsTheOptex = (0 ==
         InterlockedCompareExchange(&m_psi->m_lLockCount, 1, 0));

      if (fThisThreadOwnsTheOptex) {

         // Optex is unowned, let this thread own it once
         m_psi->m_dwThreadId = dwThreadId;
         m_psi->m_lRecurseCount = 1;

      } else {

         if (m_psi->m_dwThreadId == dwThreadId) {

            // If optex is owned by this thread, own it again
            InterlockedIncrement(&m_psi->m_lLockCount);
            m_psi->m_lRecurseCount++;
            fThisThreadOwnsTheOptex = TRUE;
         }
      }

   } while (!fThisThreadOwnsTheOptex && (dwSpinCount-- > 0));

   // Return whether or not this thread owns the optex
   return(fThisThreadOwnsTheOptex);
}


///////////////////////////////////////////////////////////////////////////////


void COptex::Leave() {

#ifdef _DEBUG
   // Only the owning thread can leave the optex
   if (m_psi->m_dwThreadId != GetCurrentThreadId())
      DebugBreak();
#endif

   // Reduce this thread's ownership of the optex
   if (--m_psi->m_lRecurseCount > 0) {

      // We still own the optex
      InterlockedDecrement(&m_psi->m_lLockCount);

   } else {

      // We don't own the optex anymore
      m_psi->m_dwThreadId = 0;

      if (InterlockedDecrement(&m_psi->m_lLockCount) > 0) {

         // Other threads are waiting, the auto-reset event wakes one of them
         SetEvent(m_hevt);
      }
   }
}


//////////////////////////////// End of File //////////////////////////////////

/******************************************************************************
Module name: Optex.h
Written by:  Jeffrey Richter
******************************************************************************/

#pragma once

///////////////////////////////////////////////////////////////////////////////


class COptex {
public:
   COptex(DWORD dwSpinCount = 4000);
   COptex(PCSTR  pszName, DWORD dwSpinCount = 4000);
   COptex(PCWSTR pszName, DWORD dwSpinCount = 4000);
   ~COptex();

   void SetSpinCount(DWORD dwSpinCount);
   void Enter();
   BOOL TryEnter();
   void Leave();
   BOOL IsSingleProcessOptex() const;

private:
   typedef struct {
      DWORD m_dwSpinCount;
      long  m_lLockCount;
      DWORD m_dwThreadId;
      long  m_lRecurseCount;
   } SHAREDINFO, *PSHAREDINFO;

   HANDLE      m_hevt;
   HANDLE      m_hfm;
   PSHAREDINFO m_psi;

private:
   static BOOL sm_fUniprocessorHost;

private:
   void CommonConstructor(DWORD dwSpinCount, BOOL fUnicode, PVOID pszName);
   PSTR ConstructObjectName(PSTR pszResult,
      PCSTR pszPrefix, BOOL fUnicode, PVOID pszName);
};


///////////////////////////////////////////////////////////////////////////////

inline COptex::COptex(DWORD dwSpinCount) {

   CommonConstructor(dwSpinCount, FALSE, NULL);
}

///////////////////////////////////////////////////////////////////////////////


inline COptex::COptex(PCSTR pszName, DWORD dwSpinCount) {

   CommonConstructor(dwSpinCount, FALSE, (PVOID) pszName);
}


///////////////////////////////////////////////////////////////////////////////


inline COptex::COptex(PCWSTR pszName, DWORD dwSpinCount) {

   CommonConstructor(dwSpinCount, TRUE, (PVOID) pszName);
}


///////////////////////////////////////////////////////////////////////////////


inline COptex::IsSingleProcessOptex() const {

   return(m_hfm == NULL);
}


///////////////////////////////// End of File /////////////////////////////////

//Microsoft Developer Studio generated resource script.
//
#include "resource.h"

#define APSTUDIO_READONLY_SYMBOLS
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 2 resource.
//
#include "afxres.h"

/////////////////////////////////////////////////////////////////////////////
#undef APSTUDIO_READONLY_SYMBOLS

/////////////////////////////////////////////////////////////////////////////
// English (U.S.) resources

#if !defined(AFX_RESOURCE_DLL) || defined(AFX_TARG_ENU)
#ifdef _WIN32
LANGUAGE LANG_ENGLISH, SUBLANG_ENGLISH_US
#pragma code_page(1252)
#endif //_WIN32

/////////////////////////////////////////////////////////////////////////////
//
// Icon
//

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_OPTEX               ICON    DISCARDABLE     "Optex.ICO"

#ifdef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// TEXTINCLUDE
//

1 TEXTINCLUDE DISCARDABLE
BEGIN
    "resource.h\0"
END

2 TEXTINCLUDE DISCARDABLE
BEGIN
    "#include ""afxres.h""\r\n"
    "\0"
END

3 TEXTINCLUDE DISCARDABLE
BEGIN
    "\r\n"
    "\0"
END

#endif    // APSTUDIO_INVOKED

#endif    // English (U.S.) resources
/////////////////////////////////////////////////////////////////////////////



#ifndef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 3 resource.
//


/////////////////////////////////////////////////////////////////////////////
#endif    // not APSTUDIO_INVOKED

/******************************************************************************
Module name: OptexTest.cpp
Written by:  Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include <tchar.h>
#include <process.h>
#include "Optex.h"


///////////////////////////////////////////////////////////////////////////////


DWORD WINAPI SecondFunc(PVOID pvParam) {

   COptex& optex = * (COptex*) pvParam;

   // The primary thread should own the optex here, this should fail
   chVERIFY(optex.TryEnter() == FALSE);

   // Wait for the primary thread to give up the optex
   optex.Enter();

   optex.Enter();  // Test recursive ownership
   chMB("Secondary: Entered the optex\n(Dismiss me 2nd)");

   // Leave the optex but we still own it once
   optex.Leave();
   chMB("Secondary: The primary thread should not display a box yet");
   optex.Leave();  // The primary thread should be able to run now

   return(0);
}


///////////////////////////////////////////////////////////////////////////////


VOID FirstFunc(BOOL fLocal, COptex& optex) {

   optex.Enter();  // Gain ownership of the optex

   // Since this thread owns the optex, we should be able to get it again
   chVERIFY(optex.TryEnter());

   HANDLE hOtherThread = NULL;
   if (fLocal) {
      // Spawn a secondary thread for testing purposes (pass it the optex)

      DWORD dwThreadId;
      hOtherThread = chBEGINTHREADEX(NULL, 0,
         SecondFunc, (PVOID) &optex, 0, &dwThreadId);

   } else {
      // Spawn a secondary process for testing purposes
      STARTUPINFO si = { sizeof(si) };
      PROCESS_INFORMATION pi;
      TCHAR szPath[MAX_PATH];
      GetModuleFileName(NULL, szPath, chDIMOF(szPath));
      CreateProcess(NULL, szPath, NULL, NULL,
         FALSE, 0, NULL, NULL, &si, π);
      hOtherThread = pi.hProcess;
      CloseHandle(pi.hThread);
   }

   // Wait for the second thread to own the optex
   chMB("Primary: Hit OK to give optex to secondary");

   // Let the second thread gain ownership of the optex
   optex.Leave();
   optex.Leave();

   // Wait for the second thread to own the optex
   chMB("Primary: Hit OK to wait for the optex\n(Dismiss me 1st)");

   optex.Enter();  // Try to gain ownership back

   WaitForSingleObject(hOtherThread, INFINITE);
   CloseHandle(hOtherThread);
   optex.Leave();
}


///////////////////////////////////////////////////////////////////////////////


int WINAPI _tWinMain(HINSTANCE hinstExe, HINSTANCE, PTSTR pszCmdLine, int) {

   // This event is just used to determine which instance this is.
   HANDLE hevt = CreateEvent(NULL, FALSE, FALSE, TEXT("OptexTest"));

   if (GetLastError() != ERROR_ALREADY_EXISTS) {

      // This is the first instance of this test application

      // First, let's test the single-process optex
      COptex optexSingle;   // Create a single-process optex
      FirstFunc(TRUE, optexSingle);

      // Now, let's test the cross-process optex
      COptex optexCross("CrossOptexTest");   // Create a cross-process optex
      FirstFunc(FALSE, optexCross);

   } else {

      // This is the second instance of this test application
      DebugBreak();  // Force debugger connection for tracing

      // Test the cross-process optex
      COptex optexCross("CrossOptexTest");   // Create a cross-process optex
      SecondFunc((PVOID) &optexCross);
   }

   CloseHandle(hevt);
   return(0);
}


///////////////////////////////// End of File /////////////////////////////////

struct SomeDataStruct
{
   ...
} g_SomeSharedData;

// Create a CResGuard object that protects g_SomeSharedData.
// Note: The constructor initializes the critical section and
//       the destructor deletes the critical section.
CResGuard g_rgSomeSharedData;


void AFunction()
{
   //This function touches the shared data.

   //Protect the resource from being accessed from multiple threads.
   CResGuard::CGuard gDummy(g_rgSomeSharedData); //Enter critical section
   //Touch the g_SomeSharedData resource.
   ...

}  // Note: LeaveCriticalSection is called when gDummy goes out of scope.

CInterlockedScalar<BYTE> b = 5;   //A thread-safe BYTE
BYTE b2 = 10;                     //A non-thread-safe BYTE
b2 = b++;                         //b2=5, b=6
b *= 4;                           //b=24
b2 = b;                           //b2=24, b=24
b += b;                           //b=48
b %= 2;                           //b=0

CWhenZero<BYTE> b = 0;            // A thread-safe BYTE

// Returns immediately because b is 0
WaitForSingleObject(b, INFINITE);

b = 5;

//Returns only if another thread sets b to 0
WaitForSingleObject(b, INFINITE);

CWhenZero<BYTE> b = 5;      // A thread-safe BYTE

// Returns immediately because b is not 0
WaitForSingleObject(b.GetNotZeroHandle(), INFINITE);

b = 0;

// Returns only if another thread sets b to not 0
WaitForSingleObject(b.GetNotZeroHandle(), INFINITE);

/******************************************************************************
Module:  IntLockTest.cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include <tchar.h>
#include "Interlocked.h"


///////////////////////////////////////////////////////////////////////////////


// Set to TRUE when worker threads should terminate cleanly.
volatile BOOL g_fQuit = FALSE;


///////////////////////////////////////////////////////////////////////////////


DWORD WINAPI WorkerThread(PVOID pvParam) {

   CWhenZero<BYTE>& bVal = * (CWhenZero<BYTE> *) pvParam;

   // Should worker thread terminate?
   while (!g_fQuit) {

      // Wait for something to do
      WaitForSingleObject(bVal.GetNotZeroHandle(), INFINITE);

      // If we should quit, quit
      if (g_fQuit)
         continue;

      // Do something
      chMB("Worker thread: We have something to do");

      bVal--;     // We're done

      // Wait for all worker threads to stop
      WaitForSingleObject(bVal, INFINITE);
   }

   chMB("Worker thread: terminating");
   return(0);
}


///////////////////////////////////////////////////////////////////////////////


int WINAPI _tWinMain(HINSTANCE hinstExe, HINSTANCE, PTSTR pszCmdLine, int) {

   // Initialize to indicate that NO worker threads have anything to do
   CWhenZero<BYTE> bVal = 0;

   // Create the worker threads
   const int nMaxThreads = 2;
   HANDLE hThreads[nMaxThreads];
   for (int nThread = 0; nThread < nMaxThreads; nThread++) {
      DWORD dwThreadId;
      hThreads[nThread] = CreateThread(NULL, 0,
         WorkerThread, (PVOID) &bVal, 0, &dwThreadId);
   }

   int n;
   do {
      // Do more work or stop running?
      n = MessageBox(NULL,
         TEXT("Yes: Give worker threads something to do\nNo: Quit"),
         TEXT("Primary thread"), MB_YESNO);

      // Tell worker threads that we're quitting
      if (n == IDNO)
         InterlockedExchangePointer((PVOID*) &g_fQuit, (PVOID) TRUE);

      bVal = nMaxThreads;  // Wake the worker threads

      if (n == IDYES) {

         // There is work to do, wait for the worker threads to finish
         WaitForSingleObject(bVal, INFINITE);
      }

   } while (n == IDYES);

   // There is no more work to do, the process wants to die.
   // Wait for the worker threads to terminate
   WaitForMultipleObjects(nMaxThreads, hThreads, TRUE, INFINITE);

   // Close the worker thread handles.
   for (nThread = 0; nThread < nMaxThreads; nThread++)
      CloseHandle(hThreads[nThread]);

   // Tell the user that the process is dying
   chMB("Primary thread: terminating");

   return(0);
}


//////////////////////////////// End of File //////////////////////////////////

/******************************************************************************
Module:  Interlocked.h
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#pragma once


///////////////////////////////////////////////////////////////////////////////


// Instances of this class will be accessed by multiple threads. So,
// all members of this class (except the constructor and destructor)
// must be thread-safe.
class CResGuard {
public:
   CResGuard()  { m_lGrdCnt = 0; InitializeCriticalSection(&m_cs); }
   ~CResGuard() { DeleteCriticalSection(&m_cs); }

   // IsGuarded is used for debugging
   BOOL IsGuarded() const { return(m_lGrdCnt > 0); }

public:
   class CGuard {
   public:
      CGuard(CResGuard& rg) : m_rg(rg) { m_rg.Guard(); };
      ~CGuard() { m_rg.Unguard(); }

   private:
      CResGuard& m_rg;
   };

private:
   void Guard()   { EnterCriticalSection(&m_cs); m_lGrdCnt++; }
   void Unguard() { m_lGrdCnt--; LeaveCriticalSection(&m_cs); }

   // Guard/Unguard can only be accessed by the nested CGuard class.
   friend class CResGuard::CGuard;

private:
   CRITICAL_SECTION m_cs;
   long m_lGrdCnt;   // # of EnterCriticalSection calls
};


///////////////////////////////////////////////////////////////////////////////


// Instances of this class will be accessed by multiple threads. So,
// all members of this class (except the constructor and destructor)
// must be thread-safe.
template <class TYPE>
class CInterlockedType {

public:     // Public member functions
   // Note: Constructors & destructors are always thread safe
   CInterlockedType() { }
   CInterlockedType(const TYPE& TVal) { m_TVal = TVal; }
   virtual ~CInterlockedType()  { }

   // Cast operator to make writing code that uses
   // thread-safe data type easier
   operator TYPE() const {
      CResGuard::CGuard x(m_rg);
      return(GetVal());
   }

protected:  // Protected function to be called by derived class
   TYPE& GetVal() {
      chASSERT(m_rg.IsGuarded());
      return(m_TVal);
   }

   const TYPE& GetVal() const {
      assert(m_rg.IsGuarded());
      return(m_TVal);
   }

   TYPE SetVal(const TYPE& TNewVal) {
      chASSERT(m_rg.IsGuarded());
      TYPE& TVal = GetVal();
      if (TVal != TNewVal) {
         TYPE TPrevVal = TVal;
         TVal = TNewVal;
         OnValChanged(TNewVal, TPrevVal);
      }
      return(TVal);
   }

protected:  // Overridable functions
   virtual void OnValChanged(
      const TYPE& TNewVal, const TYPE& TPrevVal) const {
      // Nothing to do here
   }

protected:
   // Protected guard for use by derived class functions
      mutable CResGuard m_rg;

private:    // Private data members
   TYPE m_TVal;
};


///////////////////////////////////////////////////////////////////////////////


// Instances of this class will be accessed by multiple threads. So,
// all members of this class (except the constructor and destructor)
// must be thread-safe.
template <class TYPE>

class CInterlockedScalar : protected CInterlockedType<TYPE> {

public:
   CInterlockedScalar(TYPE TVal = 0) : CInterlockedType<TYPE>(TVal) {
   }

   ~CInterlockedScalar() { /* Nothing to do */ }

   // C++ does not allow operator cast to be inherited.
   operator TYPE() const {
      return(CInterlockedType<TYPE>::operator TYPE());
   }

   TYPE operator=(TYPE TVal) {
      CResGuard::CGuard x(m_rg);
      return(SetVal(TVal));
   }

   TYPE operator++(int) {    // Postfix increment operator
      CResGuard::CGuard x(m_rg);
      TYPE TPrevVal = GetVal();
      SetVal((TYPE) (TPrevVal + 1));
      return(TPrevVal);      // Return value BEFORE increment
   }

   TYPE operator--(int) {    // Postfix decrement operator.
      CResGuard::CGuard x(m_rg);
      TYPE TPrevVal = GetVal();
      SetVal((TYPE) (TPrevVal - 1));
      return(TPrevVal);      // Return value BEFORE decrement
   }

   TYPE operator += (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() +  op)); }
   TYPE operator++()
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() +   1)); }
   TYPE operator -= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() -  op)); }
   TYPE operator--()
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() -   1)); }
   TYPE operator *= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() *  op)); }
   TYPE operator /= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() /  op)); }
   TYPE operator %= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() %  op)); }
   TYPE operator ^= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() ^  op)); }
   TYPE operator &= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() &  op)); }
   TYPE operator |= (TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() |  op)); }
   TYPE operator <<=(TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() << op)); }
   TYPE operator >>=(TYPE op)
      { CResGuard::CGuard x(m_rg); return(SetVal(GetVal() >> op)); }
};


///////////////////////////////////////////////////////////////////////////////


// Instances of this class will be accessed by multiple threads. So,
// all members of this class (except the constructor and destructor)
// must be thread-safe.
template <class TYPE>
class CWhenZero : public CInterlockedScalar<TYPE> {
public:
   CWhenZero(TYPE TVal = 0, BOOL fManualReset = TRUE)
      : CInterlockedScalar<TYPE>(TVal) {

      // The event should be signaled if TVal is 0
      m_hevtZero = CreateEvent(NULL, fManualReset, (TVal == 0), NULL);

      // The event should be signaled if TVal is NOT 0
      m_hevtNotZero = CreateEvent(NULL, fManualReset, (TVal != 0), NULL);
   }

   ~CWhenZero() {
      CloseHandle(m_hevtZero);
      CloseHandle(m_hevtNotZero);
   }

   // C++ does not allow operator= to be inherited.
   TYPE operator=(TYPE x) {
      return(CInterlockedScalar<TYPE>::operator=(x));
   }

   // Return handle to event signaled when value is zero
   operator HANDLE() const { return(m_hevtZero); }

   // Return handle to event signaled when value is not zero
   HANDLE GetNotZeroHandle() const { return(m_hevtNotZero); }

   // C++ does not allow operator cast to be inherited.
   operator TYPE() const {
      return(CInterlockedScalar<TYPE>::operator TYPE());
   }

protected:
   void OnValChanged(const TYPE& TNewVal, const TYPE& TPrevVal) const {
      // For best performance, avoid jumping to
      // kernel mode if we don't have to
      if ((TNewVal == 0) && (TPrevVal != 0)) {
         SetEvent(m_hevtZero);
         ResetEvent(m_hevtNotZero);
      }
      if ((TNewVal != 0) && (TPrevVal == 0)) {
         ResetEvent(m_hevtZero);
         SetEvent(m_hevtNotZero);
      }
   }

private:
   HANDLE m_hevtZero;      // Signaled when data value is 0
   HANDLE m_hevtNotZero;   // Signaled when data value is not 0
};


//////////////////////////////// End of File //////////////////////////////////

//Microsoft Developer Studio generated resource script.
//
#include "resource.h"

#define APSTUDIO_READONLY_SYMBOLS
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 2 resource.
//
#include "afxres.h"

/////////////////////////////////////////////////////////////////////////////
#undef APSTUDIO_READONLY_SYMBOLS

/////////////////////////////////////////////////////////////////////////////
// English (U.S.) resources

#if !defined(AFX_RESOURCE_DLL) || defined(AFX_TARG_ENU)
#ifdef _WIN32
LANGUAGE LANG_ENGLISH, SUBLANG_ENGLISH_US
#pragma code_page(1252)
#endif //_WIN32

/////////////////////////////////////////////////////////////////////////////
//
// Icon
//

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_INTERLOCKEDTYPE     ICON    DISCARDABLE     "InterLockedType.ICO"

#ifdef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// TEXTINCLUDE
//

1 TEXTINCLUDE DISCARDABLE
BEGIN
    "resource.h\0"
END

2 TEXTINCLUDE DISCARDABLE
BEGIN
    "#include ""afxres.h""\r\n"
    "\0"
END

3 TEXTINCLUDE DISCARDABLE
BEGIN
    "\r\n"
    "\0"
END

#endif    // APSTUDIO_INVOKED

#endif    // English (U.S.) resources
/////////////////////////////////////////////////////////////////////////////



#ifndef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 3 resource.
//


/////////////////////////////////////////////////////////////////////////////
#endif    // not APSTUDIO_INVOKED

VOID CSWMRG::WaitToRead();  // Call this to gain shared read access.
VOID CSWMRG::WaitToWrite(); // Call this to gain exclusive write access.
VOID CSWMRG::Done();        // Call this when done accessing the resource.

/******************************************************************************
Module:  SWMRG.cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include "SWMRG.h"


///////////////////////////////////////////////////////////////////////////////


CSWMRG::CSWMRG() {

   // Initially no readers want access, no writers want access, and
   // no threads are accessing the resource
   m_nWaitingReaders = m_nWaitingWriters = m_nActive = 0;
   m_hsemReaders = CreateSemaphore(NULL, 0, MAXLONG, NULL);
   m_hsemWriters = CreateSemaphore(NULL, 0, MAXLONG, NULL);
   InitializeCriticalSection(&m_cs);
}


///////////////////////////////////////////////////////////////////////////////


CSWMRG::~CSWMRG() {

#ifdef _DEBUG
   // A SWMRG shouldn't be destroyed if any threads are using the resource
   if (m_nActive != 0)
      DebugBreak();
#endif

   m_nWaitingReaders = m_nWaitingWriters = m_nActive = 0;
   DeleteCriticalSection(&m_cs);
   CloseHandle(m_hsemReaders);
   CloseHandle(m_hsemWriters);
}


///////////////////////////////////////////////////////////////////////////////


VOID CSWMRG::WaitToRead() {

   // Ensure exclusive access to the member variables
   EnterCriticalSection(&m_cs);

   // Are there writers waiting or is a writer writing?
   BOOL fResourceWritePending = (m_nWaitingWriters || (m_nActive < 0));

   if (fResourceWritePending) {

      // This reader must wait, increment the count of waiting readers
      m_nWaitingReaders++;
   } else {

      // This reader can read, increment the count of active readers
      m_nActive++;
   }

   // Allow other threads to attempt reading/writing
   LeaveCriticalSection(&m_cs);

   if (fResourceWritePending) {

      // This thread must wait
      WaitForSingleObject(m_hsemReaders, INFINITE);
   }
}


///////////////////////////////////////////////////////////////////////////////


VOID CSWMRG::WaitToWrite() {

   // Ensure exclusive access to the member variables
   EnterCriticalSection(&m_cs);

   // Are there any threads accessing the resource?
   BOOL fResourceOwned = (m_nActive != 0);

   if (fResourceOwned) {

      // This writer must wait, increment the count of waiting writers
      m_nWaitingWriters++;
   } else {

      // This writer can write, decrement the count of active writers
      m_nActive = -1;
   }

   // Allow other threads to attempt reading/writing
   LeaveCriticalSection(&m_cs);

   if (fResourceOwned) {

      // This thread must wait
      WaitForSingleObject(m_hsemWriters, INFINITE);
   }
}


///////////////////////////////////////////////////////////////////////////////


VOID CSWMRG::Done() {

   // Ensure exclusive access to the member variables
   EnterCriticalSection(&m_cs);

   if (m_nActive > 0) {

      // Readers have control so a reader must be done
      m_nActive--;
   } else {

      // Writers have control so a writer must be done
      m_nActive++;
   }

   HANDLE hsem = NULL;  // Assume no threads are waiting
   LONG lCount = 1;     // Assume only 1 waiter wakes; always true for writers

   if (m_nActive == 0) {

      // No thread has access, who should wake up?
      // NOTE: It is possible that readers could never get access
      //       if there are always writers wanting to write

      if (m_nWaitingWriters > 0) {

         // Writers are waiting and they take priority over readers
         m_nActive = -1;         // A writer will get access
         m_nWaitingWriters--;    // One less writer will be waiting
         hsem = m_hsemWriters;   // Writers wait on this semaphore
         // NOTE: The semaphore will release only 1 writer thread

      } else if (m_nWaitingReaders > 0) {

         // Readers are waiting and no writers are waiting
         m_nActive = m_nWaitingReaders;   // All readers will get access
         m_nWaitingReaders = 0;           // No readers will be waiting
         hsem = m_hsemReaders;            // Readers wait on this semaphore
         lCount = m_nActive;              // Semaphore releases all readers
      } else {

         // There are no threads waiting at all; no semaphore gets released
      }
   }

   // Allow other threads to attempt reading/writing
   LeaveCriticalSection(&m_cs);

   if (hsem != NULL) {

      // Some threads are to be released
      ReleaseSemaphore(hsem, lCount, NULL);
   }
}


//////////////////////////////// End of File //////////////////////////////////

/******************************************************************************
Module:  SWMRG.h
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#pragma once


///////////////////////////////////////////////////////////////////////////////


class CSWMRG {
public:
   CSWMRG();                 // Constructor
   ~CSWMRG();                // Destructor

   VOID WaitToRead();        // Call this to gain shared read access
   VOID WaitToWrite();       // Call this to gain exclusive write access
   VOID Done();              // Call this when done accessing the resource

private:
   CRITICAL_SECTION m_cs;    // Permits exclusive access to other members
   HANDLE m_hsemReaders;     // Readers wait on this if a writer has access
   HANDLE m_hsemWriters;     // Writers wait on this if a reader has access
   int    m_nWaitingReaders; // Number of readers waiting for access
   int    m_nWaitingWriters; // Number of writers waiting for access
   int    m_nActive;         // Number of threads currently with access
                             //   (0=no threads, >0=# of readers, -1=1 writer)
};


//////////////////////////////// End of File //////////////////////////////////

//Microsoft Developer Studio generated resource script.
//
#include "resource.h"

#define APSTUDIO_READONLY_SYMBOLS
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 2 resource.
//
#include "afxres.h"

/////////////////////////////////////////////////////////////////////////////
#undef APSTUDIO_READONLY_SYMBOLS

/////////////////////////////////////////////////////////////////////////////
// English (U.S.) resources

#if !defined(AFX_RESOURCE_DLL) || defined(AFX_TARG_ENU)
#ifdef _WIN32
LANGUAGE LANG_ENGLISH, SUBLANG_ENGLISH_US
#pragma code_page(1252)
#endif //_WIN32

/////////////////////////////////////////////////////////////////////////////
//
// Icon
//

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_SWMRG               ICON    DISCARDABLE     "SWMRG.ico"

#ifdef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// TEXTINCLUDE
//

1 TEXTINCLUDE DISCARDABLE
BEGIN
    "resource.h\0"
END

2 TEXTINCLUDE DISCARDABLE
BEGIN
    "#include ""afxres.h""\r\n"
    "\0"
END

3 TEXTINCLUDE DISCARDABLE
BEGIN
    "\r\n"
    "\0"
END

#endif    // APSTUDIO_INVOKED

#endif    // English (U.S.) resources
/////////////////////////////////////////////////////////////////////////////



#ifndef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 3 resource.
//


/////////////////////////////////////////////////////////////////////////////
#endif    // not APSTUDIO_INVOKED

/******************************************************************************
Module:  SWMRGTest.Cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include <tchar.h>
#include <process.h>       // for _beginthreadex
#include "SWMRG.h"


///////////////////////////////////////////////////////////////////////////////


// Global Single-Writer/Multiple-Reader Guard synchronization object
CSWMRG g_swmrg;


///////////////////////////////////////////////////////////////////////////////


DWORD WINAPI Thread(PVOID pvParam) {

   TCHAR sz[50];
   wsprintf(sz, TEXT("SWMRG Test: Thread %d"), PtrToShort(pvParam));
   int n = MessageBox(NULL,
      TEXT("YES: Attempt to read\nNO: Attempt to write"), sz, MB_YESNO);

   // Attempt to read or write
   if (n == IDYES)
      g_swmrg.WaitToRead();
   else
      g_swmrg.WaitToWrite();

   MessageBox(NULL,
      (n == IDYES) ? TEXT("OK stops READING") : TEXT("OK stops WRITING"),
      sz, MB_OK);

   // Stop reading/writing
   g_swmrg.Done();
   return(0);
}


///////////////////////////////////////////////////////////////////////////////


int WINAPI _tWinMain(HINSTANCE hinstExe, HINSTANCE, PTSTR pszCmdLine, int) {

   // Spawn a bunch of threads that will attempt to read/write
   HANDLE hThreads[MAXIMUM_WAIT_OBJECTS];
   for (int nThreads = 0; nThreads < 8; nThreads++) {
      DWORD dwThreadId;
      hThreads[nThreads] =
         chBEGINTHREADEX(NULL, 0, Thread, (PVOID) (DWORD_PTR) nThreads,
            0, &dwThreadId);
   }

   // Wait for all the threads to exit
   WaitForMultipleObjects(nThreads, hThreads, TRUE, INFINITE);
   while (nThreads--)
      CloseHandle(hThreads[nThreads]);

   return(0);
}


//////////////////////////////// End of File //////////////////////////////////

DWORD WINAPI WaitForMultipleExpressions(
   DWORD nExpObjects,
   CONST HANDLE* phExpObjects,
   DWORD dwMilliseconds);

DWORD WaitForMultipleObjects(
   DWORD dwObjects,
   CONST HANDLE* phObjects,
   BOOL fWaitAll,
   DWORD dwMilliseconds);

// Break all the waiting expression threads out of their
// wait state so that they can terminate cleanly.
for(dwExpNum = 0; dwExpNum < dwNumExps; dwExpNum++)
{
   if((WAIT_TIMEOUT == dwWaitRet) ||
      (dwExpNum != (dwWaitRet - WAIT_OBJECT_0)))
   {
      QueueUserAPC(WFME_ExpressionAPC, ahThreads[dwExpNum], 0);
   }
}

// This is the APC callback routine function.
VOID WINAPI WFME_ExpressionAPC(DWORD dwData)
{
   //This function intentionally left blank
}

// Wait for an expression to come TRUE or for a timeout.
dwWaitRet = WaitForMultipleObjects(dwExpNum, ahThreads,
   FALSE, dwMilliseconds);

if (WAIT_TIMEOUT == dwWaitRet)
{
   //We timed out; check if any expressions were satisfied by
   //checking the state of the hsemOnlyOne semaphore.
   dwWaitRet = WaitForSingleObject(hsemOnlyOne, 0);

   if (WAIT_TIMEOUT == dwWaitRet)
   {
      // If the semaphore was not signaled, some thread expression
      // was satisfied; we need to determine which expression.
      dwWaitRet = WaitForMultipleObjects(dwExpNum,
         ahThreads, FALSE, INFINITE);

   }
   else
   {

      // No expression was satisfied and WaitForSingleObject just gave
      // us the semaphore, so we know that no expression can ever be
      // satisfied now -- waiting for an expression has timed out.
      dwWaitRet = WAIT_TIMEOUT;
   }
}

/******************************************************************************
Module:  WaitForMultExp.cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include <malloc.h>
#include <process.h>
#include "WaitForMultExp.h"


///////////////////////////////////////////////////////////////////////////////


// Internal data structure representing a single expression.
// Used to tell OR-threads what objects to wait on.
typedef struct {
   PHANDLE m_phExpObjects;   // Points to set of handles
   DWORD   m_nExpObjects;    // Number of handles
} EXPRESSION, *PEXPRESSION;


///////////////////////////////////////////////////////////////////////////////


// The OR-thread function
DWORD WINAPI WFME_ThreadExpression(PVOID pvParam) {

   // This thread function just waits for an expression to come true.
   // The thread waits in an alertable state so that it can be forced
   // to stop waiting by queuing an entry to its APC queue.
   PEXPRESSION pExpression = (PEXPRESSION) pvParam;
   return(WaitForMultipleObjectsEx(
      pExpression->m_nExpObjects, pExpression->m_phExpObjects,
      TRUE, INFINITE, TRUE));
}


///////////////////////////////////////////////////////////////////////////////


// This is the APC callback routine function
VOID WINAPI WFME_ExpressionAPC(ULONG_PTR dwData) {

   // This function intentionally left blank
}


///////////////////////////////////////////////////////////////////////////////


// Function to wait on mutiple Boolean expressions
DWORD WINAPI WaitForMultipleExpressions(DWORD nExpObjects,
   CONST HANDLE* phExpObjects, DWORD dwMilliseconds) {

   // Allocate a temporary array because we modify the passed array and
   // we need to add a handle at the end for the hsemOnlyOne semaphore.
   PHANDLE phExpObjectsTemp = (PHANDLE)
      _alloca(sizeof(HANDLE) * (nExpObjects + 1));
   CopyMemory(phExpObjectsTemp, phExpObjects, sizeof(HANDLE) * nExpObjects);
   phExpObjectsTemp[nExpObjects] = NULL;  // Put sentinel at end

   // Semaphore to guarantee that only one expression gets satisfied
   HANDLE hsemOnlyOne = CreateSemaphore(NULL, 1, 1, NULL);

   // Expression information: 1 per possible thread
   EXPRESSION Expression[MAXIMUM_WAIT_OBJECTS];

   DWORD dwExpNum  = 0;    // Current expression number
   DWORD dwNumExps = 0;    // Total number of expressions

   DWORD dwObjBegin = 0;   // First index of a set
   DWORD dwObjCur   = 0;   // Current index of object in a set

   DWORD dwThreadId, dwWaitRet = 0;

   // Array of thread handles for threads: 1 per expression
   HANDLE ahThreads[MAXIMUM_WAIT_OBJECTS];

   // Parse the callers handle list by initializing a structure for
   // each expression and adding hsemOnlyOne to each expression.
   while ((dwWaitRet != WAIT_FAILED) && (dwObjCur <= nExpObjects)) {

      // While no errors, and object handles are in the caller's list...

      // Find next expression (OR-expressions are separated by NULL handles)
      while (phExpObjectsTemp[dwObjCur] != NULL)
         dwObjCur++;

      // Initialize Expression structure which an OR-thread waits on
      phExpObjectsTemp[dwObjCur] = hsemOnlyOne;
      Expression[dwNumExps].m_phExpObjects =  &phExpObjectsTemp[dwObjBegin];
      Expression[dwNumExps].m_nExpObjects  =  dwObjCur - dwObjBegin + 1;

      if (Expression[dwNumExps].m_nExpObjects > MAXIMUM_WAIT_OBJECTS) {
         // Error: Too many handles in single expression
         dwWaitRet = WAIT_FAILED;
         SetLastError(ERROR_SECRET_TOO_LONG);
      }

      // Advance to the next expression
      dwObjBegin = ++dwObjCur;
      if (++dwNumExps == MAXIMUM_WAIT_OBJECTS) {
         // Error: Too many expressions
         dwWaitRet = WAIT_FAILED;
         SetLastError(ERROR_TOO_MANY_SECRETS);
      }
   }

   if (dwWaitRet != WAIT_FAILED) {

      // No errors occurred while parsing the handle list

      // Spawn thread to wait on each expression
      for (dwExpNum = 0; dwExpNum < dwNumExps; dwExpNum++) {

         ahThreads[dwExpNum] = chBEGINTHREADEX(NULL,
            1, // We only require a small stack
            WFME_ThreadExpression, &Expression[dwExpNum],
            0, &dwThreadId);
      }

      // Wait for an expression to come TRUE or for a timeout
      dwWaitRet = WaitForMultipleObjects(dwExpNum, ahThreads,
         FALSE, dwMilliseconds);

      if (WAIT_TIMEOUT == dwWaitRet) {

         // We timed-out, check if any expressions were satisfied by
         // checking the state of the hsemOnlyOne semaphore.
         dwWaitRet = WaitForSingleObject(hsemOnlyOne, 0);

         if (WAIT_TIMEOUT == dwWaitRet) {

            // If the semaphore was not signaled, some thread expressions
            // was satisfied; we need to determine which expression.
            dwWaitRet = WaitForMultipleObjects(dwExpNum,
               ahThreads, FALSE, INFINITE);

         } else {

            // No expression was satisfied and WaitForSingleObject just gave
            // us the semaphore so we know that no expression can ever be
            // satisfied now -- waiting for an expression has timed-out.
            dwWaitRet = WAIT_TIMEOUT;
         }
      }

      // Break all the waiting expression threads out of their
      // wait state so that they can terminate cleanly.
      for (dwExpNum = 0; dwExpNum < dwNumExps; dwExpNum++) {

         if ((WAIT_TIMEOUT == dwWaitRet) ||
             (dwExpNum != (dwWaitRet - WAIT_OBJECT_0))) {

            QueueUserAPC(WFME_ExpressionAPC, ahThreads[dwExpNum], 0);
         }
      }

#ifdef _DEBUG
      // In debug builds, wait for all of expression threads to terminate
      // to make sure that we are forcing the threads to wake up.
      // In non-debug builds, we'll assume that this works and
      // not keep this thread waiting any longer.
      WaitForMultipleObjects(dwExpNum, ahThreads, TRUE, INFINITE);
#endif

      // Close our handles to all the expression threads
      for (dwExpNum = 0; dwExpNum < dwNumExps; dwExpNum++) {
         CloseHandle(ahThreads[dwExpNum]);
      }
   }  // error occurred while parsing

   CloseHandle(hsemOnlyOne);
   return(dwWaitRet);
}


//////////////////////////////// End of File //////////////////////////////////

/******************************************************************************
Module:  WaitForMultExp.h
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#pragma once


///////////////////////////////////////////////////////////////////////////////


DWORD WINAPI WaitForMultipleExpressions(DWORD nExpObjects,
   CONST HANDLE* phExpObjects, DWORD dwMilliseconds);


//////////////////////////////// End of File //////////////////////////////////

/******************************************************************************
Module:  TestWfME.cpp
Notices: Copyright (c) 2000 Jeffrey Richter
******************************************************************************/


#include "..\CmnHdr.h"     /* See Appendix A. */
#include <windowsx.h>
#include <tchar.h>
#include <process.h>
#include "resource.h"
#include "WaitForMultExp.h"


///////////////////////////////////////////////////////////////////////////////


// g_ahObjs contains the list of event kernel object
// handles referenced in the Boolean expression.
#define MAX_KERNEL_OBJS     1000
HANDLE g_ahObjs[MAX_KERNEL_OBJS];


// ahExpObjs contains all the expressions. A single expression
// consists of a contiguous set of kernel object handles that
// is TRUE when all the objects are signaled at the same time.
// A NULL handle is used to separate OR expressions.

// A handle value may NOT appear multiple times within an AND
// expression but the same handle value may appear in
// different OR expressions.

// An expresion can have a maximum of 64 sets with no more
// than 63 handles/set plus a NULL handle to separate each set
#define MAX_EXPRESSION_SIZE   ((64 * 63) + 63)


// m_nExpObjects is the number of entries used in the ahExpObjects array.
typedef struct {
   HWND     m_hwnd;                            // Where to send results
   DWORD    m_dwMilliseconds;                  // How long before timeout
   DWORD    m_nExpObjects;                     // # of entries in object list
   HANDLE   m_ahExpObjs[MAX_EXPRESSION_SIZE];  // List of objs
} AWFME, *PAWFME;
AWFME g_awfme;


// This message is posted to the UI thread when an expression
// comes true or when we timeout while waiting for an
// expression to come TRUE.
#define WM_WAITEND      (WM_USER + 101)


///////////////////////////////////////////////////////////////////////////////


BOOL Dlg_OnInitDialog(HWND hwnd, HWND hwndFocus, LPARAM lParam) {

   chSETDLGICONS(hwnd, IDI_WFMETEXT);

   // Initialize the controls in the dialog box
   SetDlgItemInt(hwnd,  IDC_NUMOBJS, 4, FALSE);
   SetDlgItemInt(hwnd,  IDC_TIMEOUT, 30000, FALSE);
   SetDlgItemText(hwnd, IDC_EXPRESSION,
      _T("1 2 | 2 3 4 | 1 4"));

   // Set the multi-column listbox's column size
   ListBox_SetColumnWidth(GetDlgItem(hwnd, IDC_OBJLIST),
      LOWORD(GetDialogBaseUnits()) * 4);

   return(TRUE);  // Accept default focus window.
}


///////////////////////////////////////////////////////////////////////////////


DWORD WINAPI AsyncWaitForMultipleExpressions(PVOID pvParam) {

   PAWFME pawfme = (PAWFME) pvParam;

   DWORD dw = WaitForMultipleExpressions(pawfme->m_nExpObjects,
      pawfme->m_ahExpObjs, pawfme->m_dwMilliseconds);
   PostMessage(pawfme->m_hwnd, WM_WAITEND, dw, 0);
   return(0);
}


///////////////////////////////////////////////////////////////////////////////


LRESULT Dlg_OnWaitEnd(HWND hwnd, WPARAM wParam, LPARAM lParam) {

   // Close all the event kernel object handles
   for (int n = 0; g_ahObjs[n] != NULL; n++)
      CloseHandle(g_ahObjs[n]);

   // Tell the user the result of running the test
   if (wParam == WAIT_TIMEOUT)
      SetDlgItemText(hwnd, IDC_RESULT, __TEXT("Timeout"));
   else
      SetDlgItemInt(hwnd, IDC_RESULT, (DWORD) wParam - WAIT_OBJECT_0, FALSE);

   // Allow the user to change values and run the test again
   EnableWindow(GetDlgItem(hwnd, IDC_NUMOBJS),    TRUE);
   EnableWindow(GetDlgItem(hwnd, IDC_TIMEOUT),    TRUE);
   EnableWindow(GetDlgItem(hwnd, IDC_EXPRESSION), TRUE);
   EnableWindow(GetDlgItem(hwnd, IDOK),           TRUE);
   SetFocus(GetDlgItem(hwnd, IDC_EXPRESSION));

   return(0);
}


///////////////////////////////////////////////////////////////////////////////


void Dlg_OnCommand(HWND hwnd, int id, HWND hwndCtl, UINT codeNotify) {

   // Obtain the user's settings from the dialog box controls.
   TCHAR szExpression[100];
   ComboBox_GetText(GetDlgItem(hwnd, IDC_EXPRESSION), szExpression,
      sizeof(szExpression) / sizeof(szExpression[0]));

   int nObjects = GetDlgItemInt(hwnd, IDC_NUMOBJS, NULL, FALSE);

   switch (id) {
   case IDCANCEL:
      EndDialog(hwnd, id);
      break;

   case IDC_OBJLIST:
      switch (codeNotify) {
      case LBN_SELCHANGE:
         // An item changed state, reset all items and set the selected ones.
         for (int n = 0; n < nObjects; n++)
            ResetEvent(g_ahObjs[n]);

         for (n = 0; n < nObjects; n++) {
            if (ListBox_GetSel(GetDlgItem(hwnd, IDC_OBJLIST), n))
               SetEvent(g_ahObjs[n]);
         }
         break;
      }
      break;

   case IDOK:
      // Prevent the user from changing values while the test is running
      SetFocus(GetDlgItem(hwnd, IDC_OBJLIST));
      EnableWindow(GetDlgItem(hwnd, IDC_NUMOBJS),    FALSE);
      EnableWindow(GetDlgItem(hwnd, IDC_TIMEOUT),    FALSE);
      EnableWindow(GetDlgItem(hwnd, IDC_EXPRESSION), FALSE);
      EnableWindow(GetDlgItem(hwnd, IDOK),           FALSE);

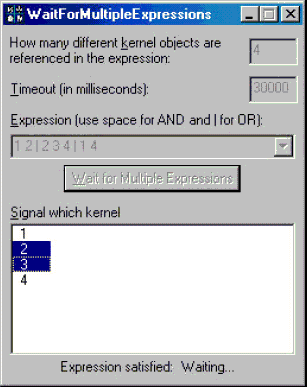

      // Notify the user that the test is running
      SetDlgItemText(hwnd, IDC_RESULT, TEXT("Waiting..."));

      // Create all of the desired kernel objects
      ZeroMemory(g_ahObjs, sizeof(g_ahObjs));
      g_awfme.m_nExpObjects = 0;
      ZeroMemory(g_awfme.m_ahExpObjs, sizeof(g_awfme.m_ahExpObjs));
      g_awfme.m_hwnd = hwnd;
      g_awfme.m_dwMilliseconds = GetDlgItemInt(hwnd, IDC_TIMEOUT, NULL, FALSE);

      ListBox_ResetContent(GetDlgItem(hwnd, IDC_OBJLIST));
      for (int n = 0; n < nObjects; n++) {
         TCHAR szBuf[20];
         g_ahObjs[n] = CreateEvent(NULL, FALSE, FALSE, NULL);

         wsprintf(szBuf, TEXT("  %d"), n + 1);
         ListBox_AddString(GetDlgItem(hwnd, IDC_OBJLIST),
            &szBuf[lstrlen(szBuf) - 3]);
      }

      PTSTR p = _tcstok(szExpression, TEXT(" "));
      while (p != NULL) {
         g_awfme.m_ahExpObjs[g_awfme.m_nExpObjects++] =
            (*p == TEXT('|')) ? NULL : g_ahObjs[_ttoi(p) - 1];
         p = _tcstok(NULL, TEXT(" "));
      }

      DWORD dwThreadId;
      CloseHandle(chBEGINTHREADEX(NULL, 0,
         AsyncWaitForMultipleExpressions, &g_awfme,
         0, &dwThreadId));
      break;
   }
}


///////////////////////////////////////////////////////////////////////////////


INT_PTR WINAPI Dlg_Proc(HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam) {

   switch (uMsg) {
      chHANDLE_DLGMSG(hwnd, WM_INITDIALOG, Dlg_OnInitDialog);
      chHANDLE_DLGMSG(hwnd, WM_COMMAND,    Dlg_OnCommand);

      case WM_WAITEND:
         return(Dlg_OnWaitEnd(hwnd, wParam, lParam));
   }

   return(FALSE);
}


///////////////////////////////////////////////////////////////////////////////


int WINAPI _tWinMain(HINSTANCE hinstExe, HINSTANCE, PTSTR pszCmdLine, int) {

   DialogBox(hinstExe, MAKEINTRESOURCE(IDD_TESTW4ME), NULL, Dlg_Proc);
   return(0);
}


//////////////////////////////// End of File //////////////////////////////////

//Microsoft Developer Studio generated resource script.
//
#include "resource.h"

#define APSTUDIO_READONLY_SYMBOLS
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 2 resource.
//
#include "afxres.h"

/////////////////////////////////////////////////////////////////////////////
#undef APSTUDIO_READONLY_SYMBOLS

/////////////////////////////////////////////////////////////////////////////
// English (U.S.) resources

#if !defined(AFX_RESOURCE_DLL) || defined(AFX_TARG_ENU)
#ifdef _WIN32
LANGUAGE LANG_ENGLISH, SUBLANG_ENGLISH_US
#pragma code_page(1252)
#endif //_WIN32

/////////////////////////////////////////////////////////////////////////////
//
// Dialog
//

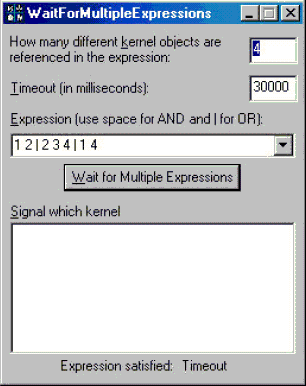

IDD_WFMETEST DIALOGEX 0, 0, 168, 185
STYLE DS_3DLOOK | DS_CENTER | WS_MINIMIZEBOX | WS_VISIBLE | WS_CAPTION |
    WS_SYSMENU
EXSTYLE WS_EX_APPWINDOW
CAPTION "WaitForMultipleExpressions"
FONT 8, "MS Sans Serif", 0, 0, 0x1
BEGIN
    LTEXT           "How many different &kernel objects are referenced in the expression:",
                    IDC_STATIC,3,4,121,17
    EDITTEXT        IDC_NUMOBJS,138,6,27,14,ES_AUTOHSCROLL
    LTEXT           "&Timeout (in milliseconds):",IDC_STATIC,4,28,83,8
    EDITTEXT        IDC_TIMEOUT,138,26,27,14,ES_AUTOHSCROLL
    LTEXT           "&Expression (use space for AND and | for OR):",
                    IDC_STATIC,4,44,143,8
    COMBOBOX        IDC_EXPRESSION,4,56,160,76,CBS_DROPDOWN | WS_VSCROLL |
                    WS_TABSTOP
    DEFPUSHBUTTON   "&Wait for Multiple Expressions",IDOK,34,72,99,14
    LTEXT           "&Signal which kernel objects:",IDC_STATIC,4,92,83,8
    LISTBOX         IDC_OBJLIST,4,102,160,68,LBS_MULTIPLESEL |
                    LBS_NOINTEGRALHEIGHT | LBS_MULTICOLUMN | WS_VSCROLL |
                    WS_HSCROLL | WS_TABSTOP
    LTEXT           "Expression satisfied:",IDC_STATIC,32,172,63,8
    LTEXT           "Timeout",IDC_RESULT,100,172,36,8
END


#ifdef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// TEXTINCLUDE
//

1 TEXTINCLUDE DISCARDABLE
BEGIN
    "resource.h\0"
END

2 TEXTINCLUDE DISCARDABLE
BEGIN
    "#include ""afxres.h""\r\n"
    "\0"
END

3 TEXTINCLUDE DISCARDABLE
BEGIN
    "\r\n"
    "\0"
END

#endif    // APSTUDIO_INVOKED


/////////////////////////////////////////////////////////////////////////////
//
// Icon
//

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_WFMETEXT            ICON    DISCARDABLE     "WaitForMultExp.ico"
#endif    // English (U.S.) resources
/////////////////////////////////////////////////////////////////////////////



#ifndef APSTUDIO_INVOKED
/////////////////////////////////////////////////////////////////////////////
//
// Generated from the TEXTINCLUDE 3 resource.
//


/////////////////////////////////////////////////////////////////////////////
#endif    // not APSTUDIO_INVOKED

CZVC编程网出品,一剑[QQ:28077188]整理编译,欢迎联系
MSN:loomman@hotmail.com
